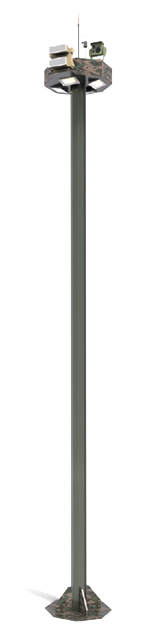

T-REX for national defense

It is an installation stand with an automatic raising and lowering function for the surveillance equipment currently in operation in the military. It improves surveillance operation capabilities by increasing the surveillance location, ensures convenience of user maintenance and management, and is designed to protect against changes in the operational environment. This is a dedicated pole for surveillance equipment that can be relocated when the surveillance area is changed.
T-REX is a system that can be used as an equipment installation when introducing unmanned remote integrated operation, drone station, and remote firearm integration/complex system between the operation of defense surveillance equipment in the future.
Application field
  • Sea, river bank, island
  • GP, GOP
  • Main Facilities
Key points
Type 5M 10M 15M 20M 30M
Pole standard 350mm 750mm 950mm
Payload 200 ~ 500kg 500 ~ 1,000kg
Raising and descending speed 1 minute 30 seconds to 12 minutes 30 seconds
Drive method Rack gear method driven by motor
Main features
  • Automatic raising and lowering and lowering assistance system
  • Equipment can be operated while ascending and descending
  • Structural design: wind speed 60m/s, seismic intensity 5.0
  • Equipment installation height within 80cm from the ground
  • Remote control and operation possible
  • Available for integrated operation of various equipment (TOD, R/D, surveillance cameras, warning lights, warning broadcasting, etc.)

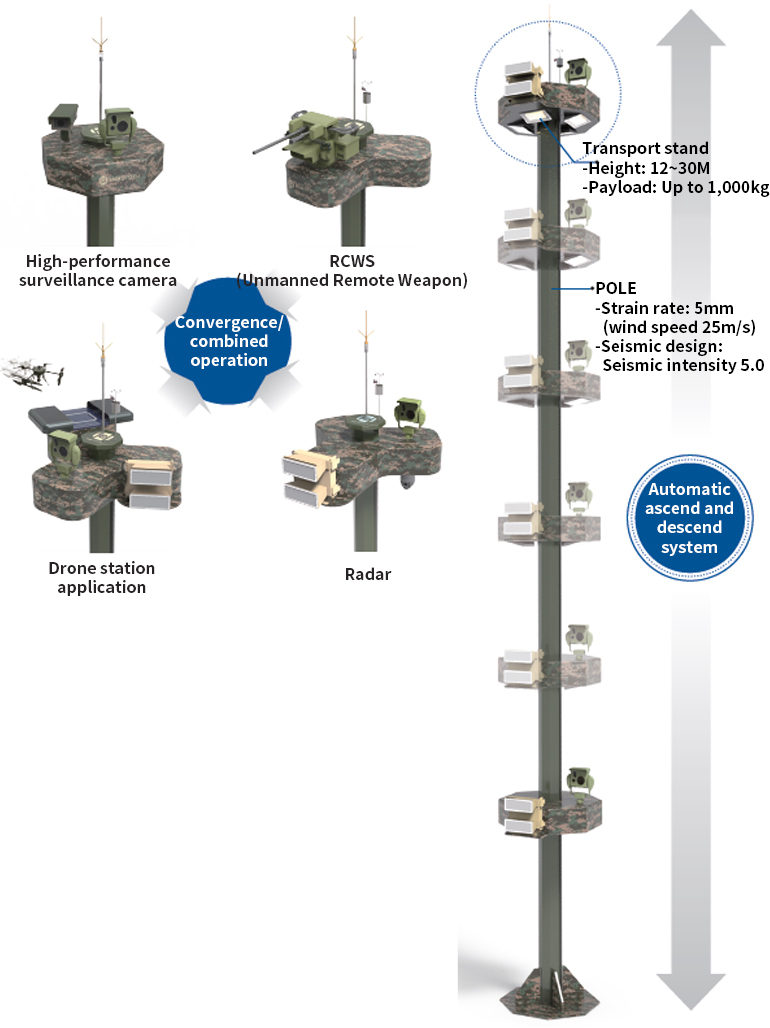

Operation and driving mode
Installation example
