CCTV

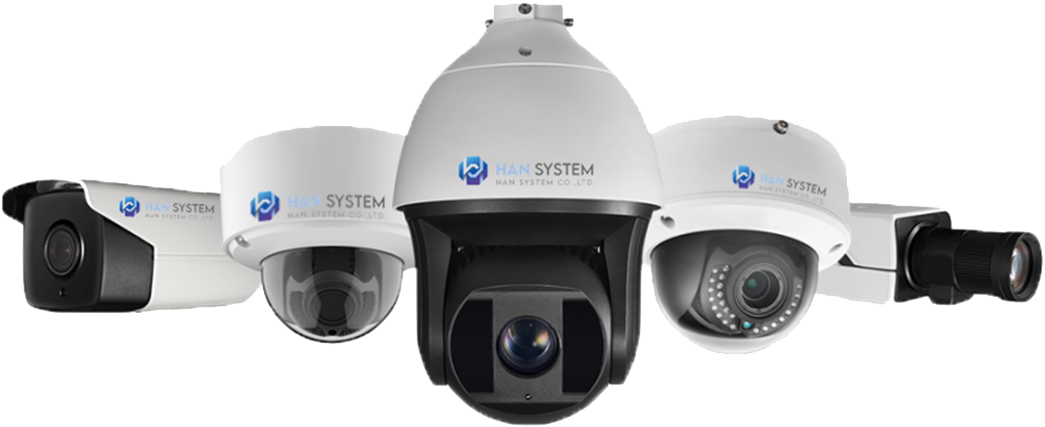

Video Surveillance System (HS-Security)
HS-Security, a video surveillance system that is at the core of preemptive surveillance
Being able to conduct accurate monitoring through high-definition video 24 hours a day means being able to preemptively monitor abnormal movements (intrusion, wandering, etc.) with a small number of personnel, thereby reducing the fatigue of human infrastructure. Movement sends an immediate alarm through intelligent video analysis, allowing security personnel to quickly respond to events.

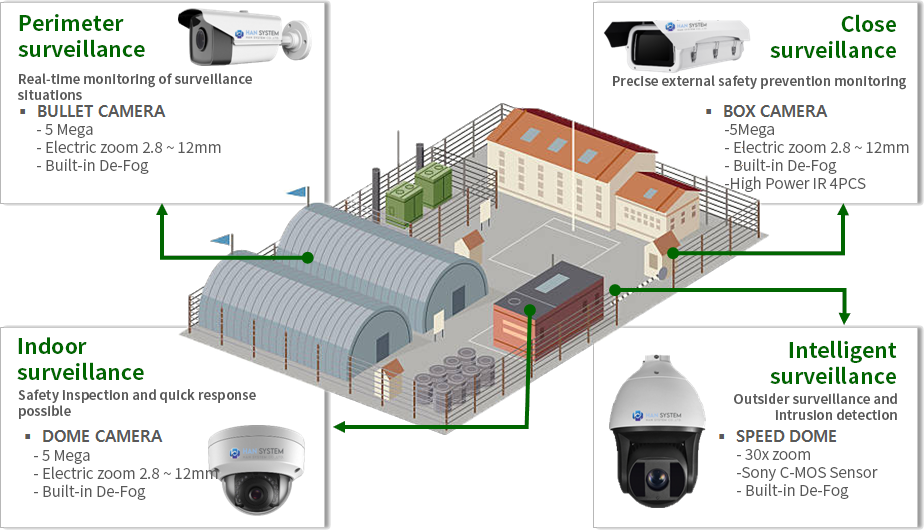

Product Composition
Application field
-

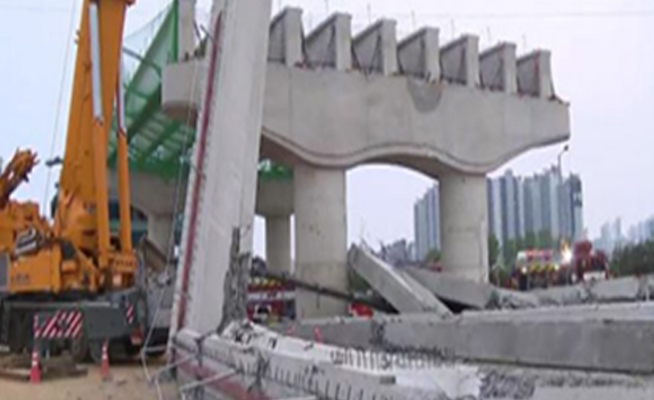

Construction site accident monitoring -

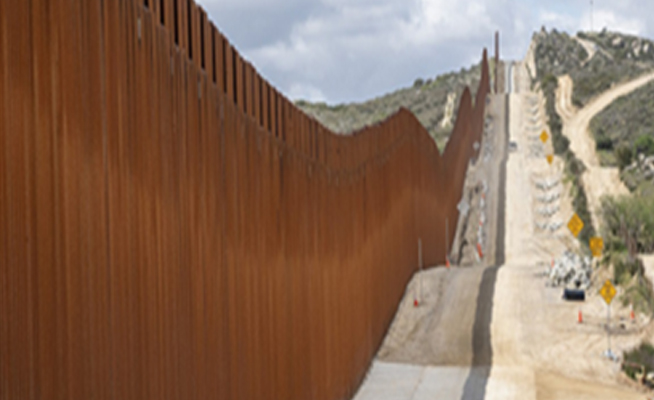

Monitoring military bases and border areas -

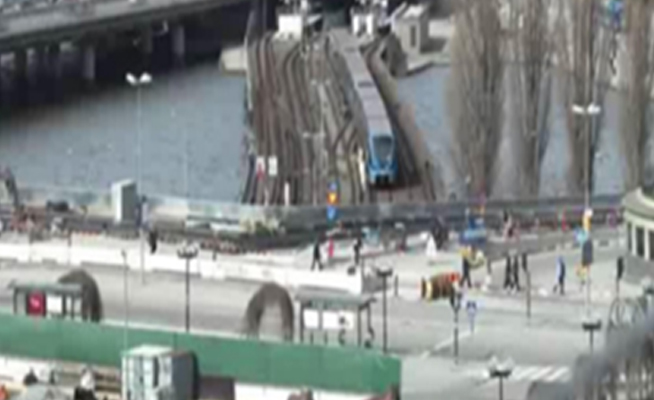

Intersection and crossing surveillance -

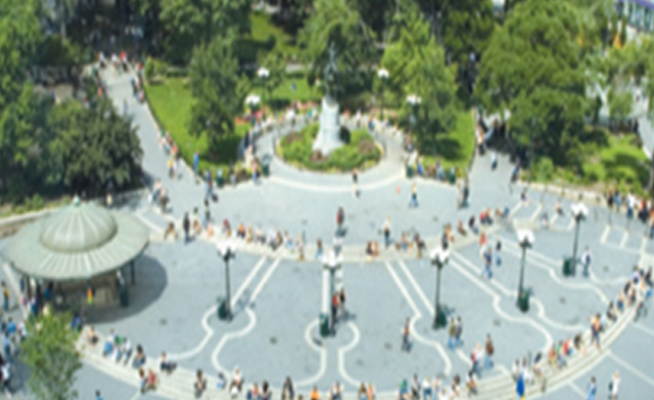

Monitoring densely populated areas
Product Introduction
Security cameras for public institutions

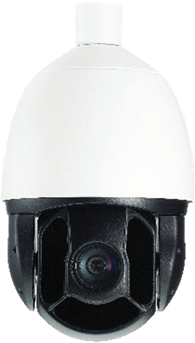

HANL-P4036
Easy to monitor from all directions, including border areas, highways, industrial complexes, and military bases
- 4 megapixel 30fps network camera· Specialized ultra-low light sensor for night vision function
- 36x (6mm~216mm) optical zoom, 32x digital zoom
- Wide monitoring range with 360-degree pan (infinite rotation), tilt -10 to 90 degrees
- Night vision distance: IR LED distance 350m
- Dustproof and waterproof certification IP66

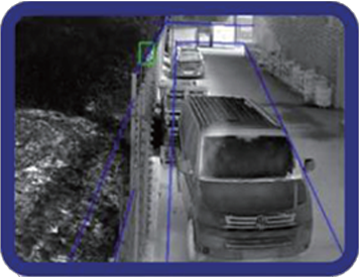

- Built-in intelligent image analysis function (line cross, tampering)· Image analysis event area setting
- No-noise and vibration-free technology applied
- Optimal LED brightness automatically adjusted according to zoom ratio
- Firmware version: AS3L_SWU1_V1.0.0.17
- HASH ( SHA256 ) : e4e962ae2fa5f051717708e8eba59953ee 6d5b845597d652ba1f8bdfc9d511f4·
- Firmware file name: s3l_fw_all.dat

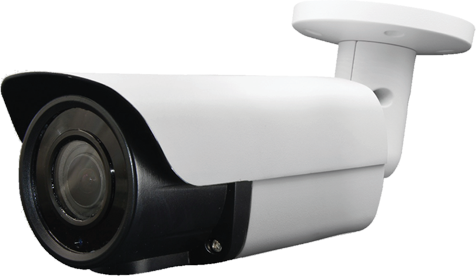

HANL-BA500
Easy to use in areas requiring surveillance such as apartments, dark alleys, and roads
- 5 megapixel 30fps network camera
- Specialized ultra-low-light sensor for night vision function applied
- Dustproof and waterproof certification IP66, shock certification IK10
- 2.7~13.5mm auto focus lens
- Night vision distance: IR LED distance 60m
- Low-light sensor
- Built-in intelligent image analysis function
- Human detection, animal detection, face detection, line cross, tampering
- Firmware version: 6.1.1.351.SEC
- HASH ( SHA256 ): 78821d43ed7e6cb0f043d1af1e3f4b0a 45aca9835409e04e9f82d0e5bb2d18e7
- Firmware file name: FTN-N6_6.1.1.351.SEC.img.encrypt
Security cameras for public institutions
Weekly video

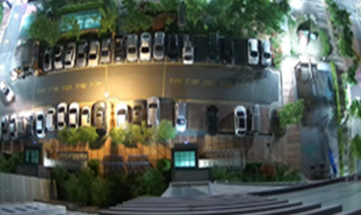

Night video
Camera conforming to TTA certification standards
- This refers to the security certification for public institutions by the Korea Telecommunication Technology Association (TTA) as a way to strengthen cyber security, such as restricting the use of CCTV whose safety has not been verified in terms of national security.
Application of ultra-low light sensor specialized for night identification function
- By applying an ultra-low-light Sony sensor, it has a sensitivity superior to that of the human eye, recognizing the shape and color of objects even in dark places and accurately obtaining the necessary information (when certain illuminance requirements for color realization are met)
Product Introduction

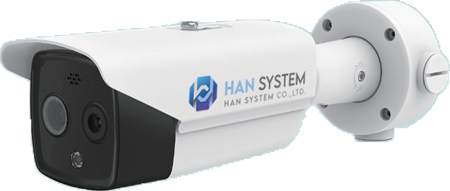

Thermal Camera
Thermal Camera

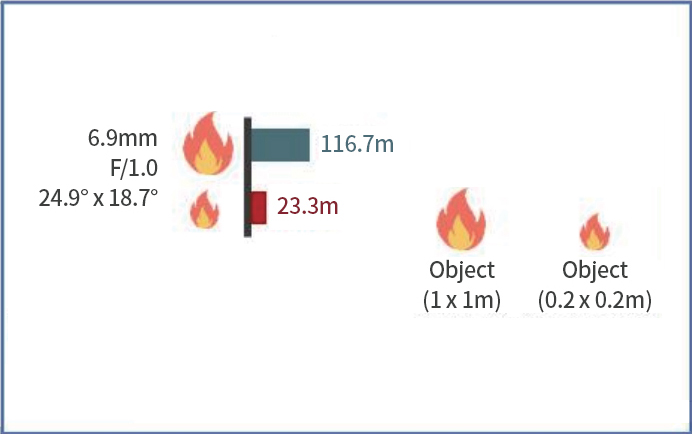

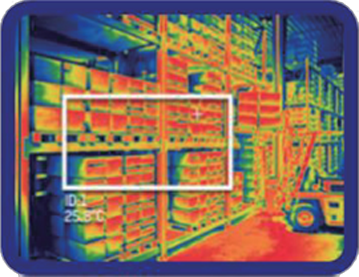

Temperature detection!
Resolution: 256x 192
Temperature range: -20 ~ 150℃
Temperature range: -20 ~ 150℃
Smart AI features!
Deep learning algorithm
Line/area violation, area departure detection
Line/area violation, area departure detection
Applies to various environments!
Construction sites, waste incineration wells, manufacturing workshops, warehouses, etc.

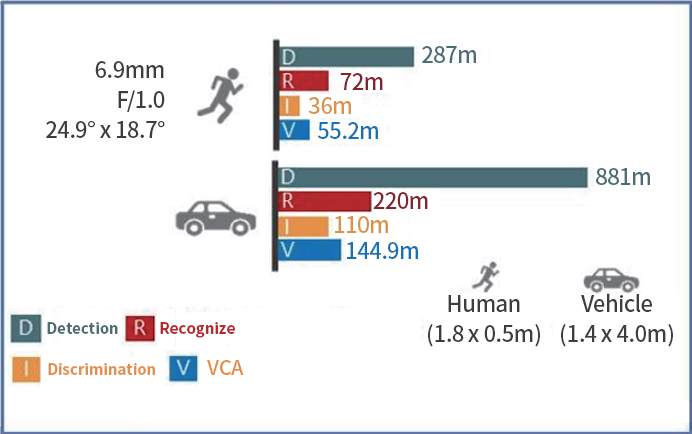

* Actual range may vary depending on camera settings, environmental conditions and type of monitor used.
* Actual range may vary depending on camera settings, environmental conditions and type of monitor used.
