Elevating Pole Platfrom

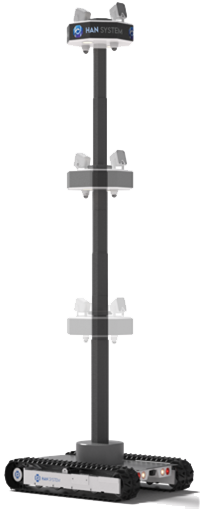

PYTHON mobile special purpose
The mounting platform can be used in a variety of ways by combining CCTV, speakers, lighting, fire extinguishers, RCWS, drone stations, etc.
Configuration: Multi-Stage + Caterpillar Robot )
Configuration: Multi-Stage + Caterpillar Robot )
Application field
- General industry: perimeter surveillance system (airport, nuclear power plant, etc.), disaster prevention system (construction, factory), external inspection system, performance hall, lighting, fire site, etc.
- Outskirts surveillance system (front line, coastal area, etc.), reconnaissance mission performance, protest suppression
Main specifications
| Height | 3 ~ 30M |
|---|---|
| Payload | Up to 60kg |
| Raising and descending method | 1. Wire method 2. Scissors method |
| Raising and descending speed | 30 seconds to 1 minute and 30 seconds |
| Height | Minimum: 1M Maximum: 10M |
| Pole specifications | 1.5Tx400mm (lower part) |
| Operation hours | Battery (150Ah) / Capable of continuous operation for approximately 2 hours per day |
※ Based on operating time: Multi-stage pole + orbital robot only
How it works and how to use it

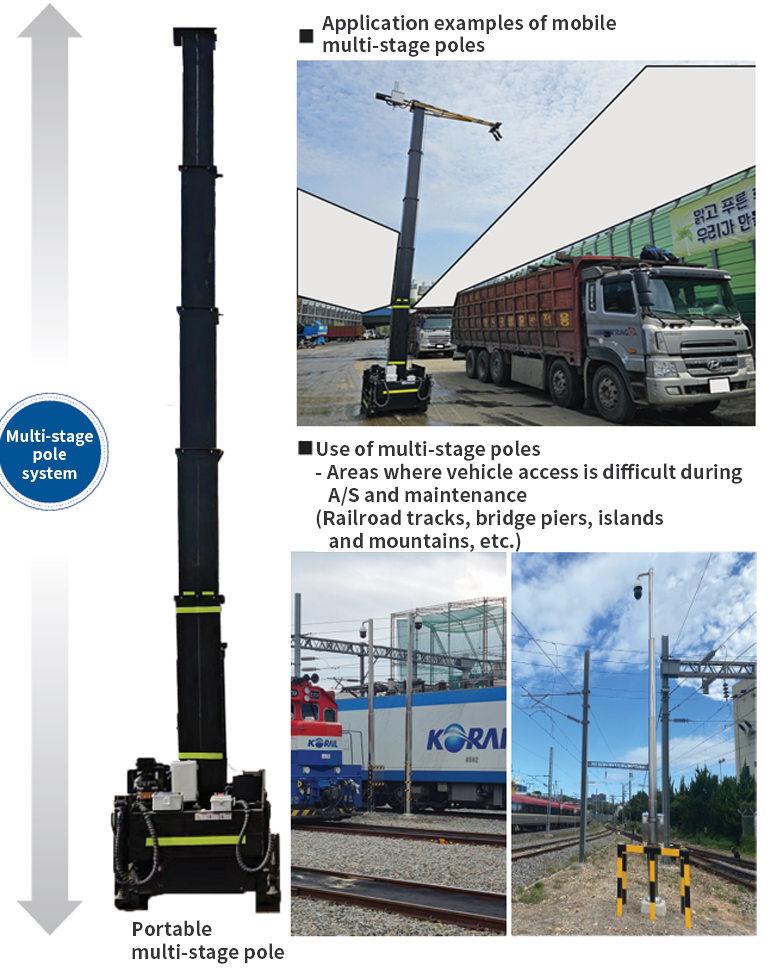

Installation example
