Elevating Pole Platfrom
FALCON Industrial
Using an automatic raising and lowering platform during installation and maintenance of various equipment installed in high areas used in general industry, user safety, convenience, efficiency, and maintenance cost reduction effect This is a product that creates.
In addition, we have developed an automatic elevating and lowering platform that can create a cityscape with a variety of designs and installations capable of convergence and operation, as well as complex installation and operation of CCTV, street lights, 5G antennas, sports facility lighting, lighting towers, billboards, and sculpture stands. It has been done.
In addition, we have developed an automatic elevating and lowering platform that can create a cityscape with a variety of designs and installations capable of convergence and operation, as well as complex installation and operation of CCTV, street lights, 5G antennas, sports facility lighting, lighting towers, billboards, and sculpture stands. It has been done.
Application field
- Intersection
- Highway
- Public facilities, etc.
Main specifications
| Height | 3 ~ 30M |
|---|---|
| Payload | 100 ~ 500kg |
| Raising and descending speed | 1 minute to 5 minutes and 30 seconds |
| Drive method | Motor driven rack gear type |
| Power | AC220V / Battery |
Main functions
| Safety |
Prevention of major disasters (fall accidents)
Rapid maintenance, maintenance
|
|---|---|
| Convenience |
Ensure user convenience with remote operation function
Possible to respond quickly in the event of A/S in a complex urban area
(Raising and lowering is possible, so quick response when two workers are employed) |
| Aesthetics |
Urban landscape maintenance
(possible complex operation of CCTV, street lights, billboards, speakers, antennas, etc.) Design with city aesthetics in mind
|
ripple effect

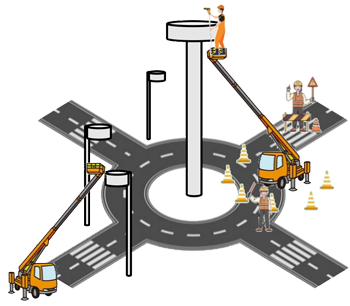

Today
- Number of people required: 5 people + ladder vehicle
(ladder truck (1) / driver (1 person) / workers (2 people) / safety manager (1 person) / signalman (1 person) ) - Time required: approximately 6 hours
Automatic raising and lowering platform
- Number of people required: 3 people + ladder vehicle
(Worker (2 people / Safety Manager (1 person))) - Time required: approximately 6 hours
Application and operation status

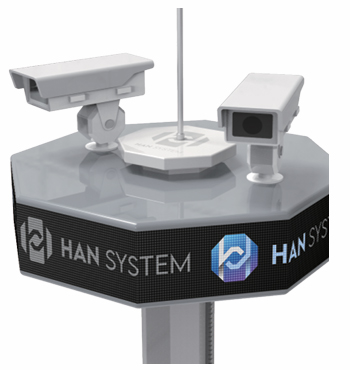

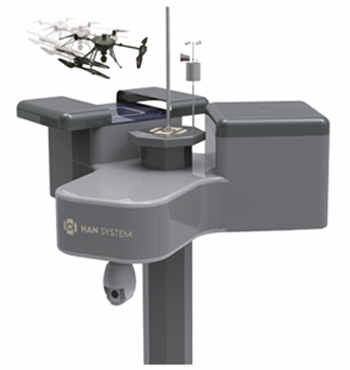

CCTV + Drone Station
CCTV + panoramic display

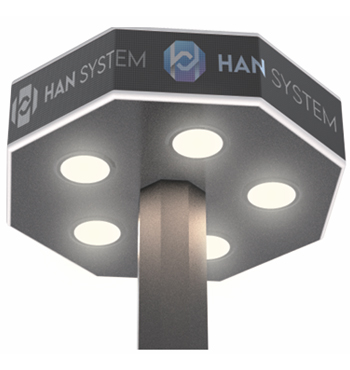

Lighting + panoramic display

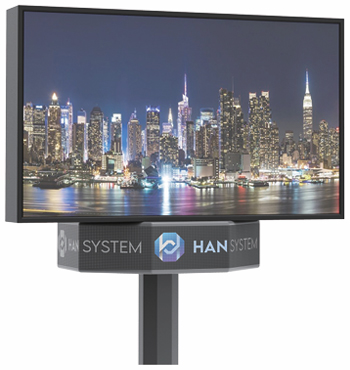

Electrical signboard advertisement
Installation example
